Bellows Couplings
Specifications
Material Stainless
Steel |
|
|
| Torque 75
oz. in. |
|
| Ang Misalignment 010 |
|
| Backlash Negligible
|
|
|
|
|
Specifications
Material Stainless
Steel |
|
|
| Torque 75
oz. in. |
|
| Ang Misalignment 010 |
|
| Backlash Negligible |
|
| Shaft Size |
A |
B |
C |
Set
Screw |
Clamp
Part No. |

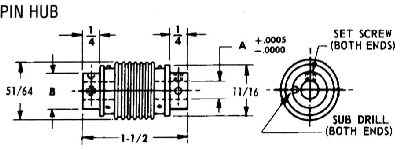

Pin Hub
Part No. |

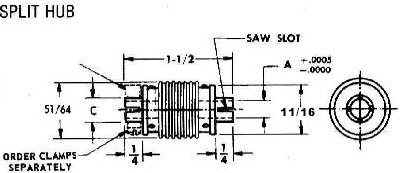

Split Hub
Part No. |
| .12 to 1/8 |
.1200
.1248 |
.312 |
.188 |
#2-56 |
L1-4 |
T1-15 |
T1-18 |
| .12 to 1/4 |
.1200
.2498 |
.312
.500 |
.188
.312 |
#2-56
#6-32 |
L1-4
L1-6 |
T1-17 |
T1-20 |
| 1/8 to 1/8 |
.1248 |
.312 |
.188 |
#2-56 |
L1-4 |
T1-1 |
T1-8 |
| 1/8 to 3/16 |
.1248
.1873 |
.312
.375 |
.188
.250 |
#2-56
#4-40 |
L1-4
L1-5 |
T1-4 |
T1-11 |
| 1/8 to 1/4 |
.1248
.2498 |
.312
.500 |
.188
.312 |
#2-56
#6-32 |
L1-4
L1-6 |
T1-5 |
T1-12 |
| Shaft Size |
A |
B |
C |
Set
Screw |
Clamp
Part No. |
Pin Hub
Part No. |
Split Hub
Part No. |
| 3/16 to 3/16 |
.1873 |
.375 |
.250 |
#4-40 |
L1-5 |
T1-2 |
T1-9 |
| 3/16 to 1/4 |
.1873
.2498 |
.375
.500 |
.250
.312 |
#4-40
#6-32 |
L1-5
L1-6 |
T1-6 |
T1-13 |
| 1/4 to 1/4 |
.2498 |
.500 |
.312 |
#6-32 |
L1-6 |
T1-3 |
T1-10 |
| 5/16 to 5/16 |
.3123 |
.500 |
.375 |
#6-32 |
L1-20 |
T1-21 |
T1-23 |
| 3/8 to 3/8 |
.3748 |
.625 |
.438 |
#8-32 |
L1-21 |
T1-22 |
T1-24 |
|
|
