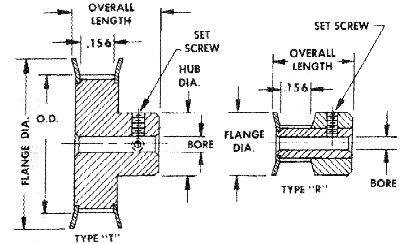

.080 Pitch Timing Pulleys
MXL, Double Flange
Aluminum Alloy, Anodized - For 1/8" Wide
Belts
| No.
of |
Type |
Pitch |
Outside |
Flange |
Overall |
Hub |
Bore |
Part |
| Grooves |
|
Dia. |
Dia. |
Dia. |
Length |
Dia. |
+0.001/-.0 |
Number |
| 10 |
R |
.255 |
.235 |
.425 |
.436 |
.425 |
.125 |
PT010A04L02R |
| 11 |
R |
.280 |
.260 |
.450 |
.436 |
.450 |
.125 |
PT011A04L02R |
| 12 |
R |
.306 |
.286 |
.480 |
.436 |
.480 |
.125 |
PT012A04L02R |
| 14 |
R |
.357 |
.337 |
.530 |
.436 |
.530 |
.125 |
PT014A04L02R |
| 15 |
R |
.382 |
.362 |
.555 |
.436 |
.555 |
.188 |
PT015A06L02R
|
| 16 |
R |
.407 |
.387 |
.580 |
.436 |
.580 |
.188 |
PT016A06L02R |
| 18 |
T |
.458 |
.438 |
.635 |
.484 |
.312 |
.188 |
PT018A06L02T |
| 20 |
T |
.509 |
.489 |
.685 |
.484 |
.364 |
.188 |
PT020A06L02T |
| 21 |
T |
.535 |
.515 |
.710 |
.484 |
.390 |
.188 |
PT021A06L02T |
| 22 |
T |
.560 |
.540 |
.740 |
.484 |
.390 |
.188 |
PT022A06L02T |
| 24 |
T |
.611 |
.591 |
.790 |
.515 |
.442 |
.250 |
PT024A08L02T |
| 28 |
T |
.713 |
.693 |
.895 |
.515 |
.494 |
.250 |
PT028A08L02T |
| 30 |
T |
.764 |
.744 |
.945 |
.515 |
.546 |
.250 |
PT030A08L02T |
| 32 |
T |
.815 |
.795 |
1.000 |
.515 |
.598 |
.250 |
PT032A08L02T |
| 36 |
T |
.917 |
.897 |
1.105 |
.515 |
.676 |
.250 |
PT036A08L02T |
| 40 |
T |
1.019 |
.999 |
1.210 |
.531 |
.754 |
.250 |
PT040A08L02T |
| 42 |
T |
1.070 |
1.050 |
1.260 |
.531 |
.806 |
.250 |
PT042A08L02T |
| 44 |
T |
1.120 |
1.100 |
1.315 |
.531 |
.858 |
.250 |
PT044A08L02T |
| 48 |
T |
1.222 |
1.202 |
1.420 |
.531 |
.936 |
.250 |
PT048A08L02T |
| 60 |
T |
1.528 |
1.508 |
1.730 |
.531 |
1.222 |
.250 |
PT060A08L02T |
|
|
