.080 Pitch Timing Pulleys

MXL, Double Flange

Aluminum Alloy, Anodized - For 1/4" Wide Belts

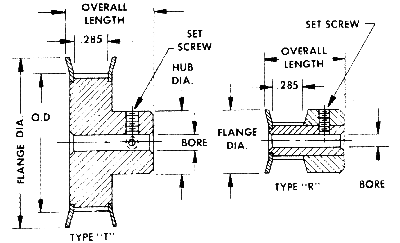

.080 Pitch Pulley- 1/4" Belt

* Type "N" Pulleys Have No Flanges

No. of Type Pitch Outside Flange Overall Hub Bore Part
Grooves   Dia. Dia. Dia. Length Dia. +0.001/-.0 Number
10 R .255 .235 .425 .565 .425 .125 PT010A04L04R
11 R .280 .260 .450 .565 .450 .125 PT011A04L04R
12 R .306 .286 .480 .565 .480 .125 PT012A04L04R
14 R .357 .337 .530 .565 .530 .125 PT014A04L04R
15 R .382 .362 .555 .565 .555 .188

PT015A06L04R
16 R .407 .387 .580 .565 .580 .188 PT016A06L04R
18 T .458 .438 .635 .625 .312 .188 PT018A06L04T
20 T .509 .489 .685 .625 .364 .188 PT020A06L04T
21 T .535 .515 .710 .625 .390 .188 PT021A06L04T
22 T .560 .540 .740 .625 .390 .188 PT022A06L04T
24 T .611 .591 .790 .687 .442 .250 PT024A08L04T
28 T .713 .693 .895 .687 .494 .250 PT028A08L04T
30 T .764 .744 .945 .687 .546 .250 PT030A08L04T
32 T .815 .795 1.000 .687 .598 .250 PT032A08L04T
36 T .917 .897 1.105 .687 .676 .250 PT036A08L04T
40 T 1.019 .999 1.210 .718 .754 .250 PT040A08L04T
42 T 1.070 1.050 1.260 .718 .806 .250 PT042A08L04T
44 T 1.120 1.100 1.315 .718 .858 .250 PT044A08L04T
48 T 1.222 1.202 1.420 .718 .936 .250 PT048A08L04T
60 T 1.528 1.508 1.730 .718 1.222 .250 PT060A08L04T
60 N 1.528 1.508 - .750 1.148 .250 PT060A08L04N
72 N 1.833 1.813 - .750 1.195 .250 PT072A08L04N
80 N 2.037 2.017 - .750 1.500 .250 PT080A08L04N
90 N 2.292 2.272 - .750 1.500 .250 PT090A08L04N
100 N 2.546 2.526 - .750 1.500 .250 PT100A08L04N
120 N 3.056 3.036 - .750 1.500 .250 PT120A08L04N
