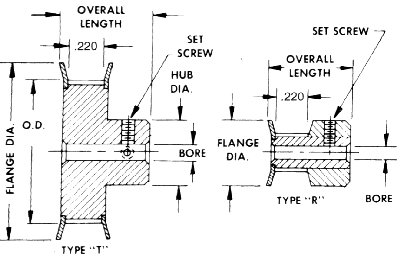

40 D.P. Timing Pulleys
.0816 Pitch, Double Flange
Aluminum Alloy, Anodized - For 1/8"
& 3/16" Wide Belts
| No.
of |
Type |
Pitch |
Outside |
Flange |
Overall |
Hub |
Bore |
Part |
| Grooves |
|
Dia. |
Dia. |
Dia. |
Length |
Dia. |
+0.001/-.0 |
Number |
| 10 |
R |
.260 |
.246 |
.425 |
.500 |
.425 |
.125 |
PT010C04L02R |
| 11 |
R |
.286 |
.272 |
.450 |
.500 |
.450 |
.125 |
PT011C04L02R |
| 12 |
R |
.312 |
.298 |
.480 |
.500 |
.480 |
.125 |
PT012C04L02R |
| 14 |
R |
.364 |
.350 |
.530 |
.500 |
.530 |
.125 |
PT014C04L02R |
| 15 |
R |
.390 |
.376 |
.555 |
.500 |
.555 |
.188 |
PT015C06L02R
|
| 16 |
R |
.416 |
.402 |
.580 |
.500 |
.580 |
.188 |
PT016C06L02R |
| 18 |
T |
.468 |
.454 |
.635 |
.563 |
.312 |
.188 |
PT018C06L02T |
| 20 |
T |
.520 |
.506 |
.685 |
.563 |
.364 |
.188 |
PT020C06L02T |
| 21 |
T |
.546 |
.532 |
.710 |
.563 |
.390 |
.188 |
PT021C06L02T |
| 22 |
T |
.572 |
.558 |
.740 |
.563 |
.390 |
.188 |
PT022C06L02T |
| 24 |
T |
.624 |
.610 |
.790 |
.625 |
.442 |
.250 |
PT024C08L02T |
| 28 |
T |
.728 |
.714 |
.895 |
.625 |
.494 |
.250 |
PT028C08L02T |
| 30 |
T |
.780 |
.766 |
.945 |
.625 |
.546 |
.250 |
PT030C08L02T |
| 32 |
T |
.832 |
.818 |
1.000 |
.625 |
.598 |
.250 |
PT032C08L02T |
| 36 |
T |
.936 |
.922 |
1.105 |
.625 |
.676 |
.250 |
PT036C08L02T |
| 40 |
T |
1.040 |
1.026 |
1.210 |
.656 |
.754 |
.250 |
PT040C08L02T |
| 42 |
T |
1.092 |
1.078 |
1.260 |
.656 |
.806 |
.250 |
PT042C08L02T |
| 44 |
T |
1.144 |
1.130 |
1.315 |
.656 |
.858 |
.250 |
PT044C08L02T |
| 48 |
T |
1.248 |
1.234 |
1.420 |
.656 |
.936 |
.250 |
PT048C08L02T |
| 60 |
T |
1.560 |
1.546 |
1.730 |
.656 |
1.222 |
.250 |
PT060C08L02T |
|
|
