40 D.P. Timing Pulleys

.0816 Pitch, Double Flange

Aluminum Alloy, Anodized - For 1/4" & 5/16" Wide Belts

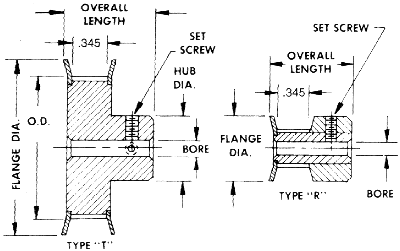

40 DP Pulley- 1/4" Belt

* Type "N" Pulleys Have No Flanges

No. of	Type	Pitch	Outside	Flange	Overall	Hub	Bore	Part
Grooves		Dia.	Dia.	Dia.	Length	Dia.	+0.001/-.0	Number
10	R	.260	.246	.425	.625	.425	.125	PT010C04L04R
11	R	.286	.272	.450	.625	.450	.125	PT011C04L04R
12	R	.312	.298	.480	.625	.480	.125	PT012C04L04R
14	R	.364	.350	.530	.625	.530	.125	PT014C04L04R
15	R	.390	.376	.555	.625	.555	.188	PT015C06L04R
16	R	.416	.402	.580	.625	.580	.188	PT016C06L04R
18	T	.468	.454	.635	.688	.312	.188	PT018C06L04T
20	T	.520	.506	.685	.688	.364	.188	PT020C06L04T
21	T	.546	.532	.710	.688	.390	.188	PT021C06L04T
22	T	.572	.558	.740	.688	.390	.188	PT022C06L04T
24	T	.624	.610	.790	.750	.442	.250	PT024C08L04T
28	T	.728	.714	.895	.750	.494	.250	PT028C08L04T
30	T	.780	.766	.945	.750	.546	.250	PT030C08L04T
32	T	.832	.818	1.000	.750	.598	.250	PT032C08L04T
36	T	.936	.922	1.105	.750	.676	.250	PT036C08L04T
40	T	1.040	1.026	1.210	.781	.754	.250	PT040C08L04T
42	T	1.092	1.078	1.260	.781	.806	.250	PT042C08L04T
44	T	1.144	1.130	1.315	.781	.858	.250	PT044C08L04T
48	T	1.248	1.234	1.420	.781	.936	.250	PT048C08L04T
60	T	1.560	1.546	1.730	.781	1.222	.250	PT060C08L04T
60	N	1.560	1.546	-	.875	1.184	.250	PT060C08L04N
72	N	1.872	1.858	-	.875	1.195	.250	PT072C08L04N
80	N	2.080	2.066	-	.875	1.500	.250	PT080C08L04N
90	N	2.340	2.326	-	.875	1.500	.250	PT090C08L04N
100	N	2.600	2.586	-	.875	1.500	.312	PT100C10L04N
120	N	3.120	3.106	-	.875	1.500	.375	PT120C12L04N
