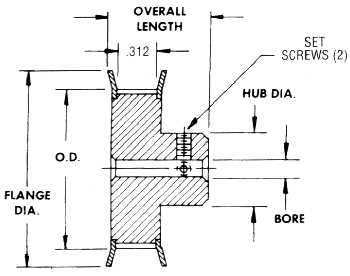

1/5 (.200) Pitch Timing Pulleys
Double Flanged
Aluminum Alloy, Anodized - For 1/4" Wide
Belts
| No. of |
Pitch |
Outside |
Flange |
Overall |
Hub |
Bore |
Part |
| Grooves |
Dia. |
Dia. |
Dia. |
Length |
Dia. |
+0.001/-.0 |
Number |
| 10 |
.637 |
.617 |
.875 |
.688 |
.375 |
.188 |
PT010D06L04T |
| 11 |
.700 |
.680 |
.938 |
.688 |
.438 |
.188 |
PT011D06L04T |
| 12 |
.764 |
.744 |
1.000 |
.688 |
.500 |
.188 |
PT012D06L04T |
| 13 |
.828 |
.808 |
1.063 |
.688 |
.563 |
.250 |
PT013D08L04T |
| 14 |
.891 |
.871 |
1.095 |
.688 |
.563 |
.250 |
PT014D08L04T |
| 15 |
.955 |
.935 |
1.188 |
.688 |
.625 |
.250 |
PT015D08L04T
|
| 16 |
1.019 |
.999 |
1.250 |
.688 |
.688 |
.250 |
PT016D08L04T |
| 18 |
1.146 |
1.126 |
1.375 |
.688 |
.813 |
.250 |
PT018D08L04T |
| 20 |
1.273 |
1.253 |
1.500 |
.750 |
.938 |
.250 |
PT020D08L04T |
| 21 |
1.337 |
1.317 |
1.563 |
.750 |
1.000 |
.250 |
PT021D08L04T
|
| 22 |
1.401 |
1.381 |
1.625 |
.750 |
1.000 |
.250 |
PT022D08L04T |
| 24 |
1.528 |
1.508 |
1.750 |
.781 |
1.063 |
.250 |
PT024D08L04T |
| 26 |
1.655 |
1.635 |
1.875 |
.781 |
1.188 |
.250 |
PT026D08L04T |
| 28 |
1.783 |
1.763 |
2.000 |
.781 |
1.188 |
.250 |
PT028D08L04T |
| 30 |
1.910 |
1.890 |
2.125 |
.781 |
1.313 |
.250 |
PT030D08L04T |
|
|
