3/8 (.375) Pitch Timing Pulleys

Double Flanged - For 3/8" Wide Belts

10-24 Grooves - Aluminum Alloy, Anodized

26-32 Grooves - Cast Iron. No hole for Set Screw

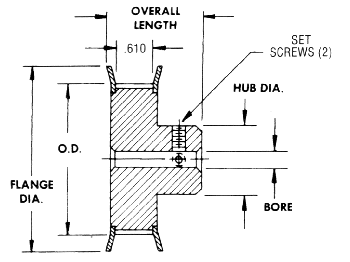

3/8 Pitch Pulley- 3/8" Belt

No. of Pitch Outside Flange Overall Hub Bore Part
Grooves Dia. Dia. Dia. Length Dia. +0.001/-.0 Number
10 1.194 1.164 1.438 1.125 .875 .375 PT010J12L08T
11 1.313 1.283 1.531 1.125 1.000 .375 PT011J12L08T
12 1.432 1.402 1.656 1.188 1.125 .375 PT012J12L08T
13 1.552 1.522 1.781 1.188 1.125 .375 PT013J12L08T
14 1.671 1.641 1.906 1.188 1.250 .375 PT014J12L08T
15 1.790 1.760 2.031 1.250 1.375 .375

PT015J12L08T
16 1.910 1.880 2.125 1.250 1.375 .500 PT016J16L08T
17 2.029 1.999 2.250 1.250 1.500 .500 PT017J16L08T
18 2.149 2.119 2.375 1.250 1.625 .500 PT018J16L08T
19 2.268 2.238 2.500 1.313 1.688 .500 PT019J16L08T
20 2.387 2.357 2.625 1.313 1.813 .500 PT020J16L08T
21 2.507 2.477 2.750 1.375 2.00 .500

PT021J16L08T
22 2.626 2.596 2.875 1.375 2.125 .500 PT022J16L08T
24 2.865 2.835 3.094 1.375 2.250 .500 PT024J16L08T
26 3.104 3.074 3.375 1.500 2.250 .500 PT026J16L08T
28 3.342 3.312 3.625 1.500 2.250 .500 PT028J16L08T
30 3.581 3.551 3.813 1.500 2.250 .500 PT030J16L08T
32 3.820 3.790 4.063 1.625 2.563 .500 PT032J16L08T
